Installation Guide for Bin One

This guide will show you how to replace the old-style Bin One with the newer design.

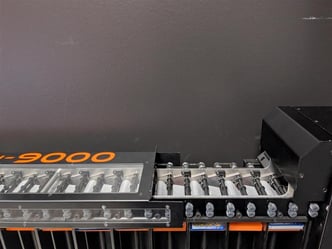

Step One: Remove your conveyor cover.

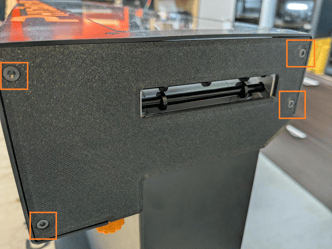

Step Two: Remove the four screws from the end of the conveyor.

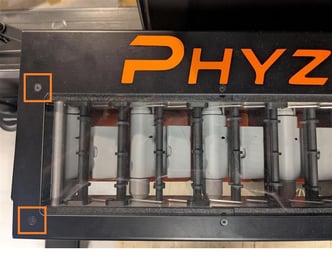

Step Three: Remove two screws from the top end of the conveyor. When removing the top screws, the brackets on the underside will likely fall off the conveyor. This is fine, as we will replace them with the new mount.

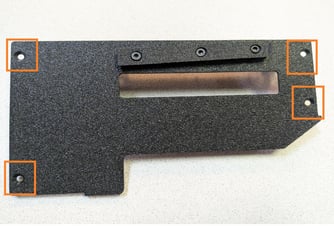

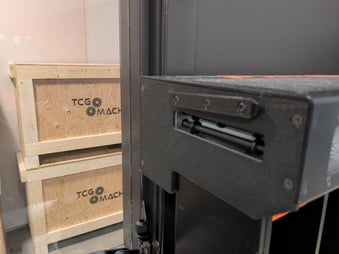

Step Four: Fit the new conveyor end bracket onto your conveyor and screw it in using the screws you removed earlier. *Don't forget to also screw in the top screws after securing the end piece via the four points pictured below.

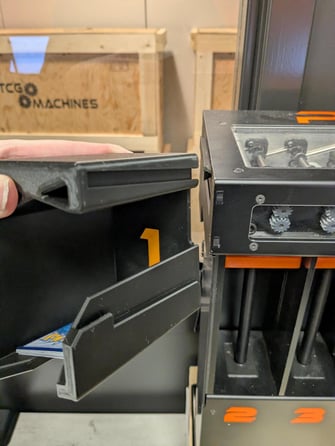

Step Five: Slide the new bin onto the slanted bracket.

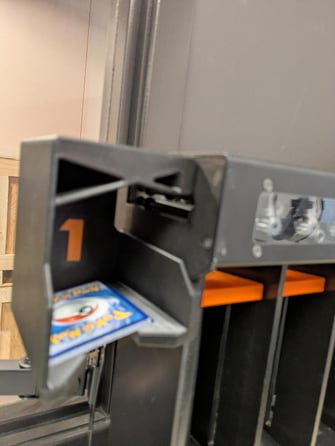

You have now successfully installed the new Bin One onto your conveyor cover.
